• ds-7608ni-m2/8p
1 1

Hikvision

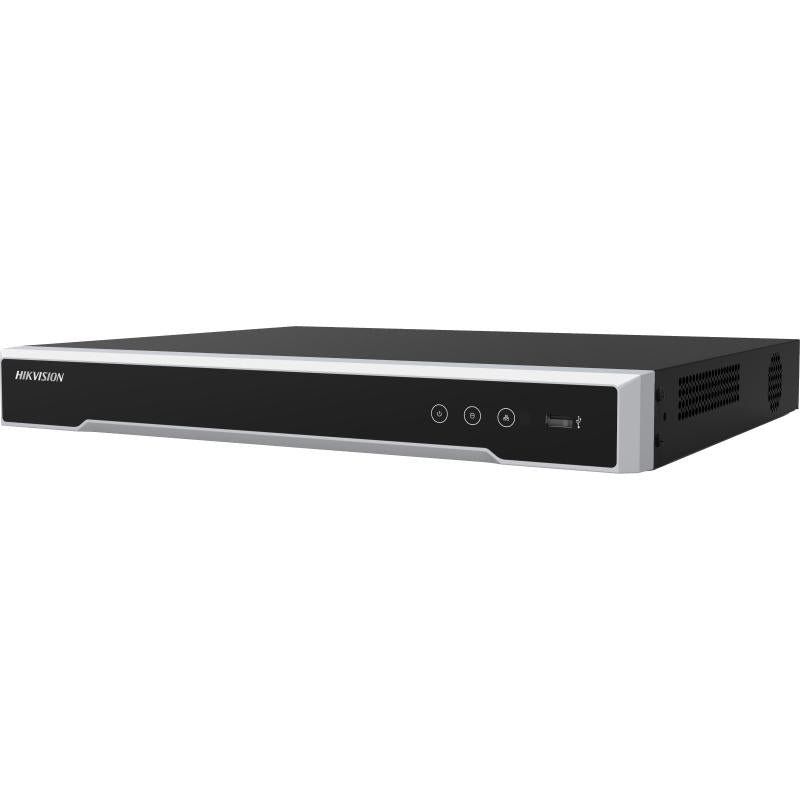

DS-7608NI-M2-8P-4TB

DS-7608NI-M2-8P-4TB

  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 8-ch IP camera inputs
  • Up to 8-ch@8 MP decoding capacity
  • Up to 128 Mbps incoming bandwidth
  Video And Audio
  • IP Video Input

    8-ch

    Up to 32 MP resolution

    *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

  • Incoming Bandwidth128 Mbps
  • Outgoing Bandwidth256 Mbps
  • HDMI Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Video Output ModeHDMI/VGA independent output
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
  • Decoding
  • Dual-Stream RecordingSupport
  • Decoding FormatH.265+/H.265/H.264+/H.264
  • Decoding Capability2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
  • Synchronous Playback8-ch
  • Recording Resolution

    32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

    *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
  • Network
  • Remote Connection128
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • PoE
  • Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power≤ 120 W
  • StandardIEEE 802.3 af/at
  • Auxiliary Interface
  • SATA2 SATA interfaces
  • CapacityUp to 16 TB capacity for each HDD
  • Alarm In/Out4/1
  • USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
  • General
  • Power Supply100 to 240 VAC, 50 to 60 Hz
  • Consumption≤ 15 W (without HDD and PoE off)
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)385 × 315× 52 mm (15.2" × 12.4" × 2.0")
  • Weight≤ 3 kg (without HDD, 2.2 lb.)
  • Certification
  • FCCPart 15 Subpart B, ANSI C63.4-2014
  • CE

    EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201

    9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
